Pro-650

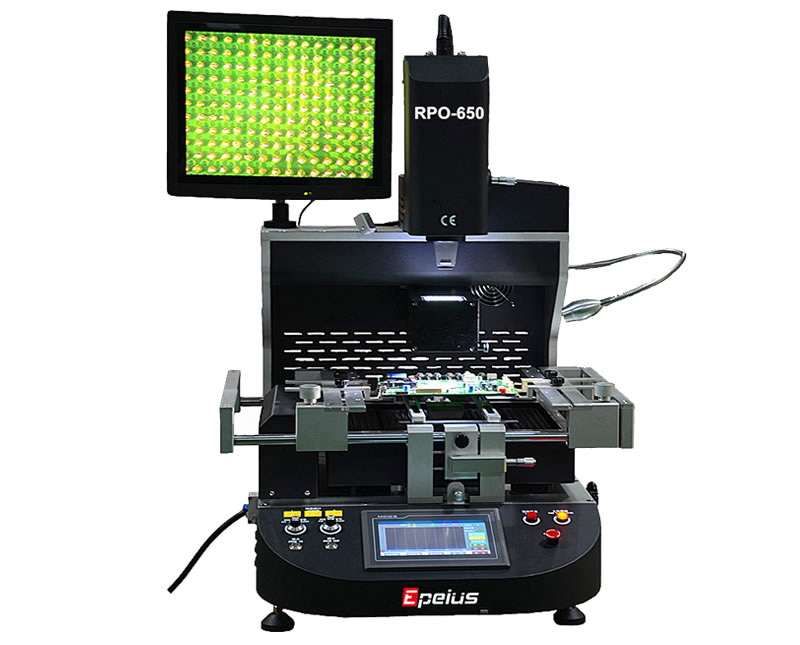

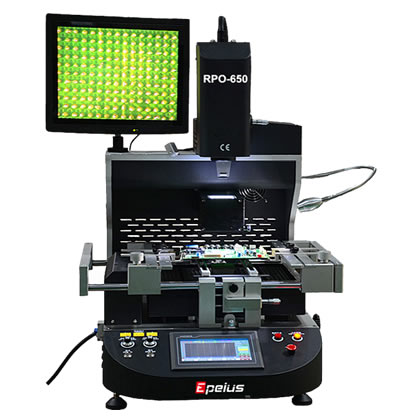

BGA Rework Station Pro-650

Pro-650 is the most popular BGA rework station with touchscreen control, 3 individual zone, 6 bottom heater with height adjustable, programmable up/bottom heating, 50X high resolution camera system, 3 thermcouple for real-time profiling.

  • High-definition optical alignment system(50X).
  • Manual X- and Y-axis optics positioning.
  • Automated Z-axis for removal, placement, soldering.

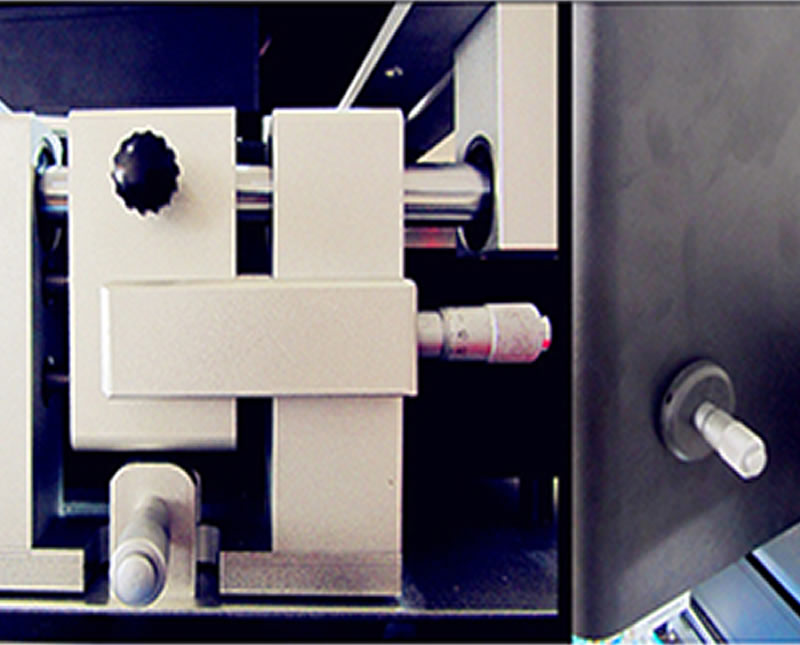

  • Micrometer-adjust X-, Y-, and Ø-axis lead-to-pad alignment.
  • Three thermocouple inputs.
  • 380*290mm IR Bottom heater.

Features

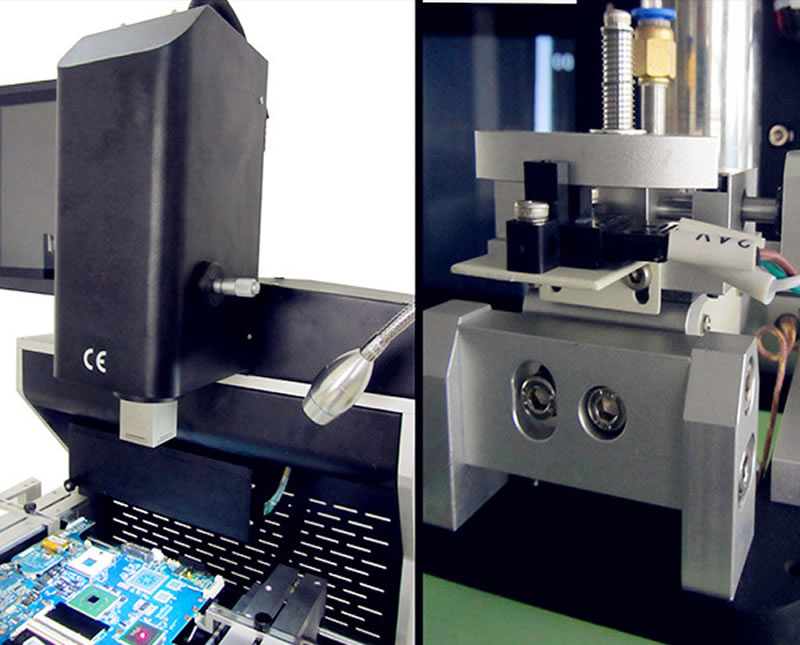

● Adopted with Linear slider, all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability.

● Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple temperature profiling data of users. With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen.

● Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±2°C. the up heating head can remove the BGA chips automatic; the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.

● The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly.

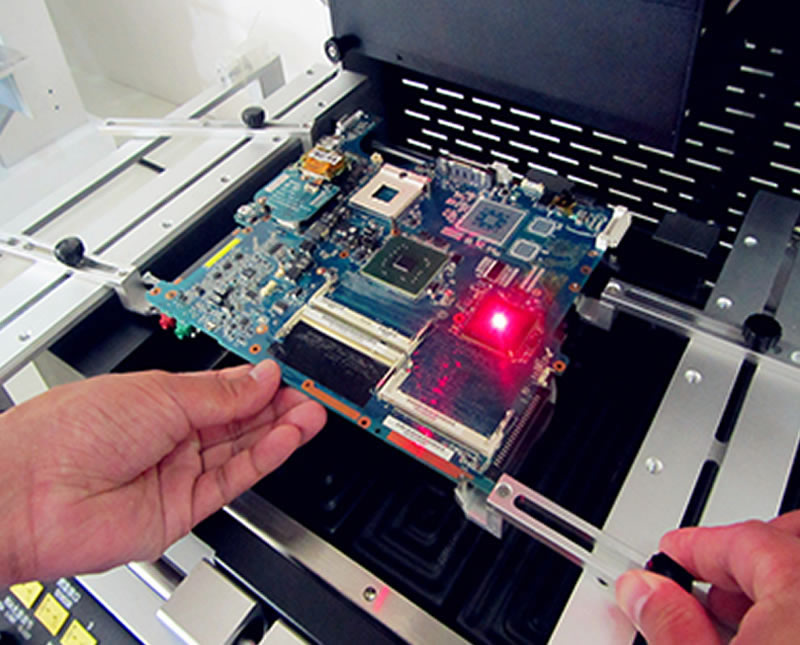

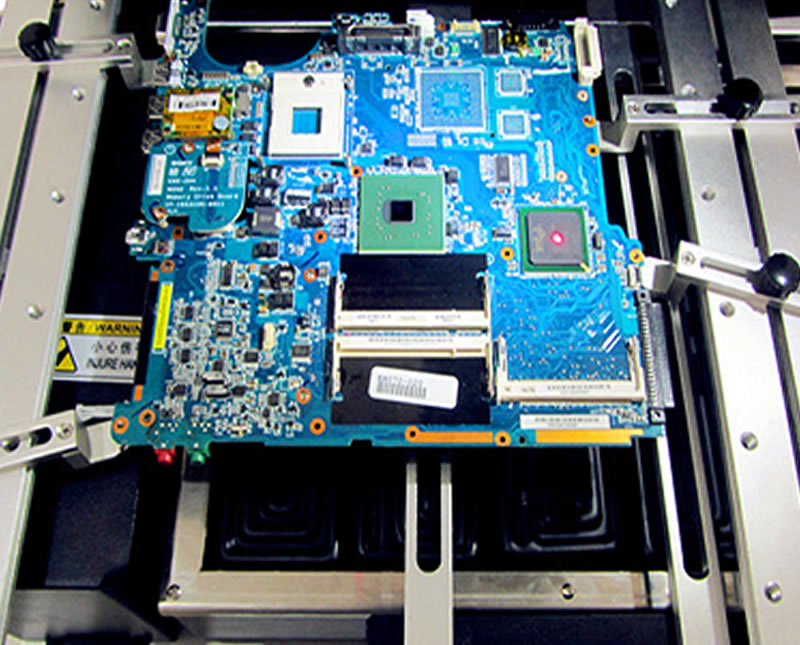

● High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.

● Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out automatical.

● Having alarm prompt function after welding is done, specially added early warning function for convenient operation.

● It has Passed CE certificate. It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function.

Specifications

Model Pro-650
PCB Size (Maximum Allowable) 8×8mm
PCB Size (Maximum Allowable) 380×380mm
PCB Size (Recommended Max.) 350×200mm
PCB Thickness 0.5mm-6mm
Component Specification
Component Size MAX 55*55mm MIN 2*2mm
Minimum BGA Ball pitch 0.3mm
Placement Precision ±0.03 mm
Heating System
IR Bottom-heater 380×290mm (2700W)
Component heater (Top) Hot Air 800W
Component heater (Bottom) Hot Air 1200W
Temperature Control K-Type Thermocouple; Closed Loop PID
Machine Specification
Main Power Source Single phase AC220V 50/60Hz
Total Power Consumption 4800W
Machine Dimensions L610×W670×H900mm
Net Weight 68kg
